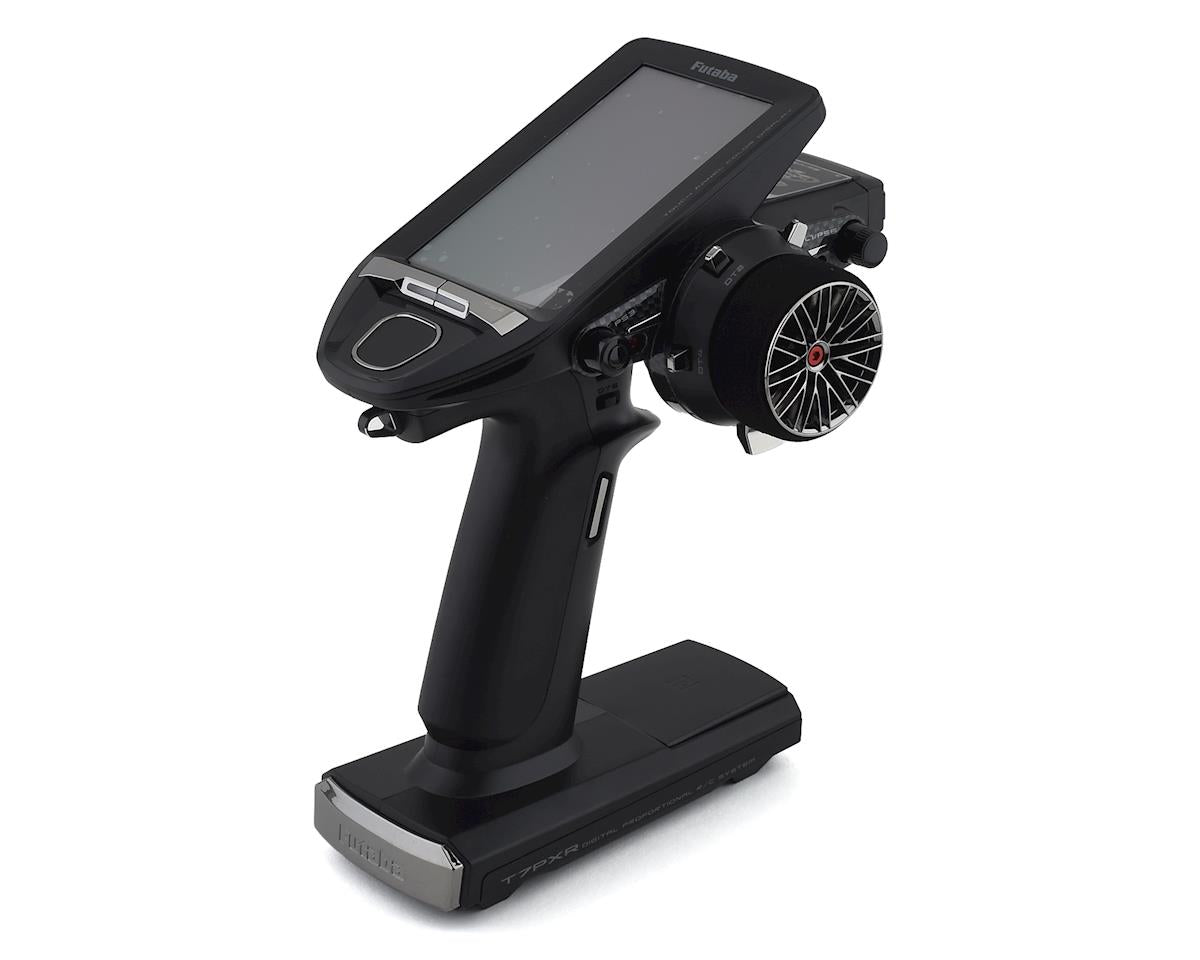

Futaba 7PXR 7-Channel 2.4GHz T-FHSS Telemetry Radio System w/R334SBS-E (Electric Models Only)

Out of stock
SKU: 01004396-3
Regular price $599.99

Out of Stock?

Call us at +1 (681) 217-2032 and ask for next availibility

The Futaba 7PXR 2.4GHz 7-Channel T-FHSS radio system is the redesigned apex radio for Futaba and features a number of upgrades over the original 7PX. The 7PXR was designed to be lightweight and easy to use with a significantly improved menu system. This 7-Channel telemetry capable T-FHSS radio system delivers features you won't find in another radio systems. The innovations start with the T-FHSS SR Super Response protocol, and continue with full telemetry capability, a back-lit 4.3" LCD touch screen and a updated R334SBS-E Diversity Receiver.

NOTE:

  • R334SBS-E receiver is recommended for electric models only and is not compatible with gas powered models. Gas powered models should use the R334SBS receiver (FUTL7688 - included with FUT01004395-3).
  • SR mode servos must be used when using T-FHSS SR mode. Use of normal servos may cause servo trouble.
Features:
  • T-FHSS Super Response transmission system (Frame Rate of 2.45 msec)
  • Compatible with T-FHSS, S-FHSS and FASST systems
  • 4.3" color LCD touch screen display
  • Telemetry capable
  • 40 memory slots to save the configurations of your models
  • 5 mix programs
  • S.Bus servo programming system
  • 7 channels with epa adjustment, sub-trim, brake mixing and ABS
  • 4WS mixing
  • Brake mixing
  • Gyro mixing
  • Steering mixing
  • Memory with lap times
  • Adjustable steering wheel and gas trigger
  • Micro SD card slot
  • Voice messages
  • Headphone jack
  • Suitable for left-handed people
Specifications:
  • Transmitter:
    • Transmitting Frequencies: 2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
    • Protocols: T-FHSS SR/T-FHSS/S-FHSS/FASST-C2
    • Power Requirement: Ni-MH – NT5F1800B (6 V)/LiFe – FT2F1700BV2 (6.6 V)
    • Current Drain: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)
    • Transmitting Antenna: 1/2 dipole
    • Display: 4.3 Inch Backlighted Color TFT Liquid Crystal Touch Panel (NOTE: When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.)
  • Receiver:
    • Size: 33.9x22.3x11.3mm (1.33x0.88x0.44")
    • Weight: 7.2 g (0.25 oz)
    • Operating Volatge: DC 3.7V-7.4V
    • Application: Electric models only
Includes:
  • T7PXR Transmitter
  • R334SBS-E Receiver
  • Dry Battery Holder
  • Wheel Offset Adapter
  • Wheel Adapter 32deg
  • Large Diameter Steering Wheel (54mm)
  • Trigger Brake Lever (Narrow Type)
  • Miniature Screwdriver
  • Screen Protector
  • (3) Receiver Plugs
