FLYSKY NOBLE NB4+ 2.4GHZ 8CH AFHDS 3 ULTRA LOW LATENCY RADIO TRANSMITTER W FGR4B RECEIVER

Description:

Transmitter Specifications:

Model: Noble NB4+

Number of channels: 8

Wireless frequency: 2.4GHZISM

Transmit power: <20dBm

Wireless standard: AFHDS 3

Low voltage alarm: <3.65V

Data output: USBType-C

Charging interface: USBType-C

Antenna type: built-in single antenna

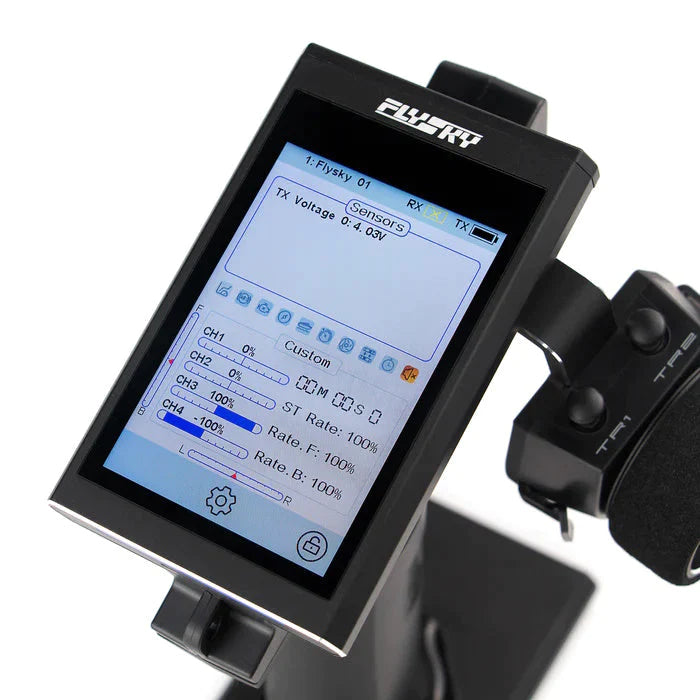

Display: 3.5-inch 320*480 full dot matrix color IPS touch highlight display

Channel resolution: 4096

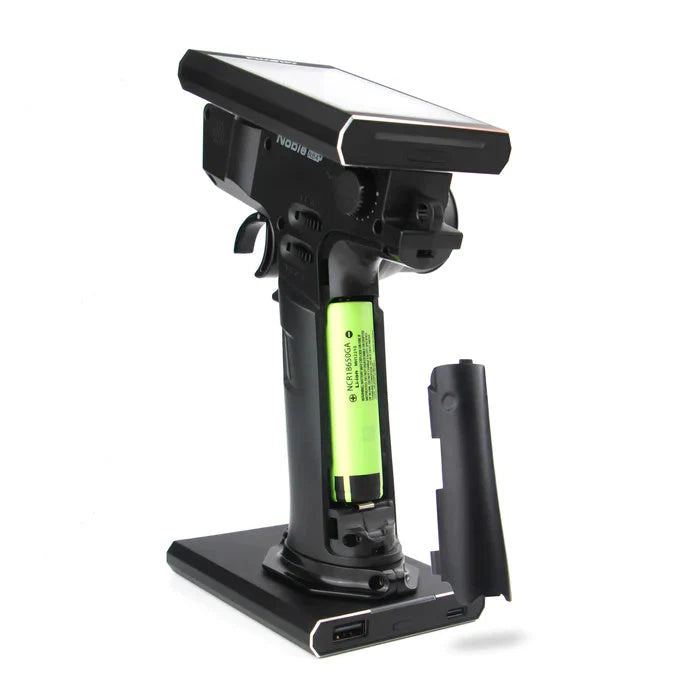

Input power supply: 1S (4.35V)*4300mAh lithium polymer battery + 3450mA18650 battery

Remote control distance: >300m (Ground distance without interference)

Online update: support

Temperature range: -10°C~+60°C

Humidity range: 20%~95%

Appearance color: black

Compatible receivers: All AFHDS 3 protocol receivers

Suitable models: cars, boats

Overall dimensions: 131.41*115.95*190.56mm

Weight: 520g

Safety certification: CE, SRRC, FCCID:2A2UNNB4PLUS00, MIC, RCM

Receiver Specifications:

Model: FGr4B PWM Channels: 4 RF: 2.4GHz ISM 2.4GHz Protocol: AFHDS 3 Antenna Type: Single Antenna Input Power: 3.5~9V/DC Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS Temperature range: -10? ~ +60? Humidity Range: 20% ~ 95% Online Update: Yes Dimensions: 17*29*16.6mm Weight: 6.4g Certifications: CE, FCC ID: N4ZFGR4B000

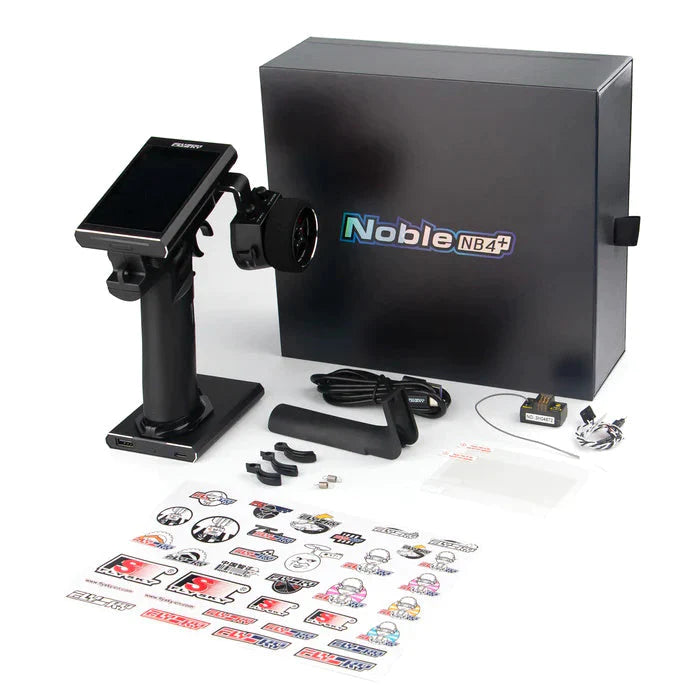

Package included:

1x Noble NB4+ Transmitter

1x FGr4B Receiver
